Project Watts, Upgraded.
The WS-12 V2 is a 1000W powered subwoofer for the studio and the stage. With frequency extension down to 23 Hz and 123 dB max SPL, it provides authoritative low end in any setting. Now in its second iteration, the WS-12 V2 adds serious electronic improvements to improve output signal-to-noise ratio, among other upgrades.
Performance
Power. Depth. Adaptability.
The WS-12 V2 Subwoofer is the most powerful studio subwoofer available under $1000. It is made to be used with any near- or mid-field studio monitors, as well as with small portable PA systems in a live setting.
One of the key design specifications for the WS-12 V2 is that it be capable of providing bass management in a 5.1 system where all of the full-range speakers are Kali IN-8s. As such, the WS-12 V2 is powered by a 1000W power amplifier mated to a high-excursion 12-Inch driver.
This much power also makes the WS-12 V2 a capable live subwoofer. Its enclosure is 18mm plywood and it has handles for easy carrying. Kali’s team made sure that it will fit in small passenger cars, so you can take it with you even when you’re calling a ride to get to your gig!
All this power is controlled by a robust, user-friendly DSP section that let you dial in the exact settings you need for your system. Whether you’re using it with a pair of LP-6s, as bass management in a 5.1 system, or on stage with a PA, it’s easy to configure the WS-12 V2 to get exactly what you need.
1000W - Class D Power
23 Hz - Lower Frequency Response
18mm - Wooden Enclosure
123 dB - Max SPL
DSP Features
Selectable Crossovers
The WS-12 V2 has selectable crossovers every 5 Hz between 50 Hz and 110 Hz.
Gain Adjustment
6 dB steps allow easy adjustment between free space, against walls, or in corners.
Polarity
Reverse the sub’s polarity for better phase response in your system.Footswitch
Bypass the sub at the press of a button to listen to your mix on full-range speakers. The sub turns off, and output signal is no longer high passed when bypassed.KALI AUDIO MONITORS
The WS-12 V2 was designed as a companion subwoofer for Kali’s LP- and IN-and SM-Series studio monitors.
When used with a pair of Kali monitors, the subwoofer can handle both bass management and LFE for any system of up to 5 of Kali’s full range speakers. Two WS-12 V2s will be sufficient in most immersive applications, and the placement of the subs can help solve low end problems in your room.
Convenient settings allow the use of an external crossover, and the WS-12 V2 can even be configured as a dedicated Low Frequency Effects channel.
OTHER MONITORS
The high power and deep frequency response of the WS-12 V2 make it an excellent choice for any near- or mid-field monitors- not just those made by Kali Audio!
With selectable crossovers every 5 Hz between 50 and 110 Hz, it can be easily matched to any system. Because of the 1000W power amp, it is capable of keeping up with very powerful studio monitors without breaking a sweat.
The WS-12 V2 can be used for bass management in systems as large as 5.1 with nearfield studio monitors, and the WS-12 V2 can even be configured as a dedicated Low Frequency Effects channel.
LIVE SOUND

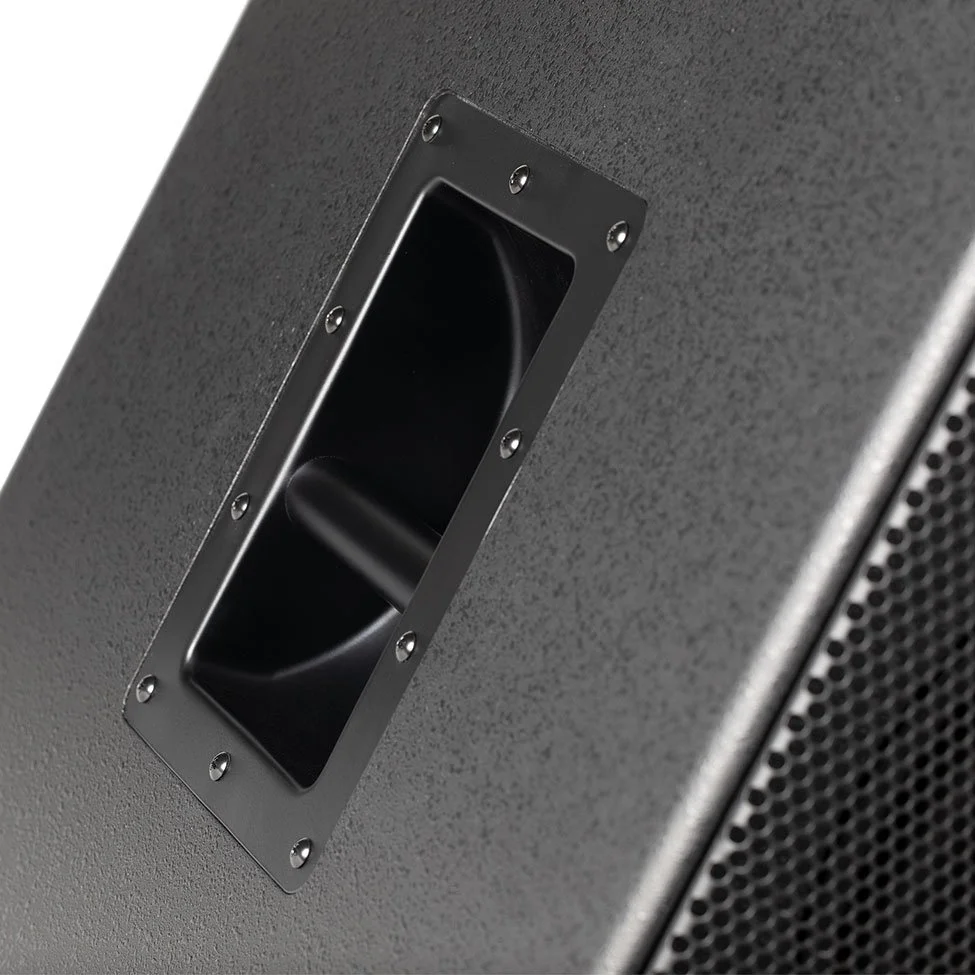

The WS-12 V2 features easy carrying handles and a rugged 18mm wooden enclosure. It is small enough to fit into most small passenger cars, making it an excellent choice for small, mobile PA systems. It features a threaded M20 pole cup for mounting PA speakers directly above the subwoofer.
One WS-12 V2 will be sufficient for use with suitcase-style all-in-one PAs like the Yamaha® StagePAS® or Fender® Passport® or linear array all-in-ones like the Bose® L1® or LD Systems® Maui®.
Two WS-12 V2s can be used side by side for use with larger systems. With two subwoofers side by side, total system Max SPL is now 129 dB with frequency extension down to 23 Hz.
Specifications
| Powered: | Yes |
| Amp Class: | D |
| Continuous Power: | 500W |
| Peak Power: | 1000W |
| Driver Complement: | 12-Inch High Excursion Woofer |
| Voice Coil Size: | 2.5 Inches |
| Freq Response: (-10dB, anechoic): | 23Hz - 250 Hz |
| Freq Range: (+/-3dB, anechoic): | 30Hz - 180 Hz |
| Recommended Listening Distance: | Up to 5 meters |
| Max SPL: (Peak at 1M) | 123 dB |
| System THD: (90dB SPL at 1M) | <2% |
| Unbalanced Inputs: | Stereo RCA (-10dBV) |
| Balanced Inputs: | Stereo XLR/TRS Combi Jack (+4dBu) |
| Balanced Outputs: | XLR |
| Pass-through signal-to-noise ratio: | >115 dB |
| Other Inputs/Outputs: | 1/4-Inch Footswitch for Sub Bypass |
| Enclosure: | Front Ported |
| Pole Cup: | M20 Threaded |
| Height: | 19.2 Inches (48.8cm) |
| Width: | 17.2 Inches (43.7cm) |
| Depth: | 20.5 Inches (52.1cm) |
| Weight: | 58 lbs (27 kg) |
